Dryer Plug L-Shaped Prong Problem
Fix incorrect L-shaped prong positioning on Whirlpool dryer units
Dryer Plug L shaped prong in Wrong Location
If the L shaped prong on the dryer cord is on the bottom, the customer will need to rotate the inside dryer plate to match the dryer plug. This problem generally occurs on Whirlpool one piece stacked washers and dryers. Although this situation is rare it does happen in 1 percentage of situations.

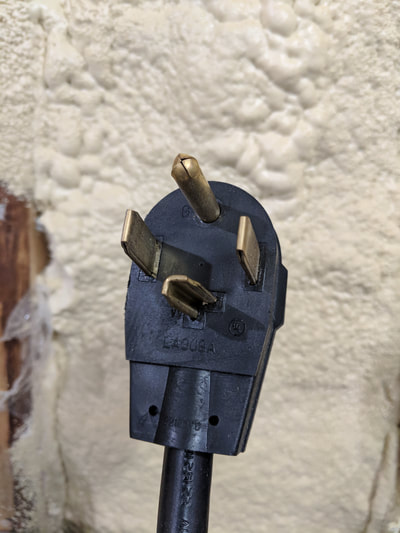

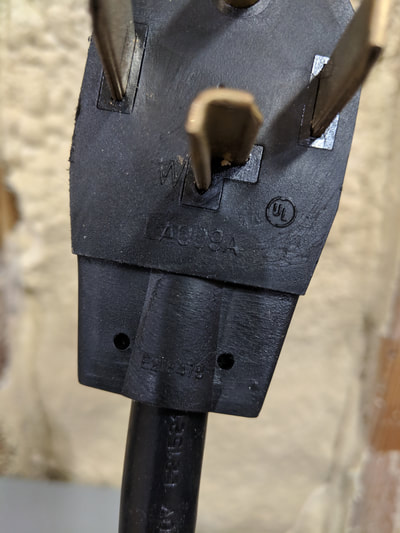

Below is a whirlpool dryer plug and you can see the L shaped prong is located at the bottom of the dryer cord head, there needs to be an adjustment made.
How to Rotate the Inside Dryer Plate to Match the Dryer Plug
This guide is intended for customers who have a Whirlpool one-piece stacked washer and dryer with an L-shaped prong at the bottom of the dryer cord. This situation is rare but does occur in approximately 1% of cases. To resolve this issue, you'll need to rotate the inside dryer plate 180 degrees.
Tools Needed
Screwdriver (#2 Robertson or large flat-head)
How to Fix

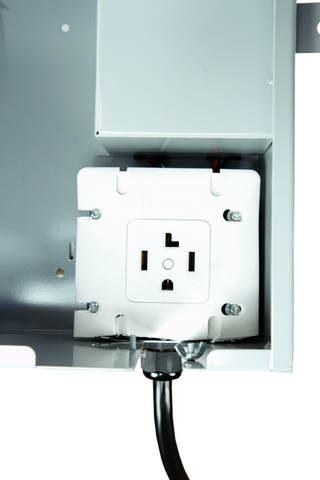

BEFORE

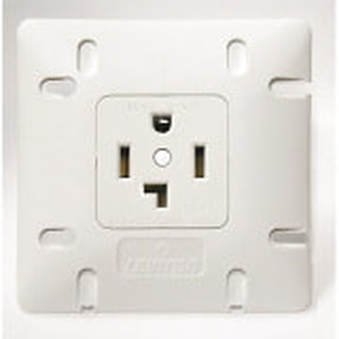

AFTER
Step-by-Step Instructions
Step 1: Gather Your Tools
Ensure you have a screwdriver on hand, either a #2 Robertson or a large flat-head.
Step 2: Disconnect Power
Before beginning, disconnect the main power supply to the Coin Box to ensure a safe working environment.
Step 3: Remove Face Plate Screws
Locate the 4 screws securing the Face Plate of the outlet. Using your screwdriver, carefully remove these screws and set them aside.
Step 4: Rotate the Face Plate
Gently grasp the Face Plate and rotate it 180 degrees. You can turn it either clockwise or counterclockwise, depending on which direction is more convenient for you.
Step 5: Reattach the Face Plate
Align the holes of the rotated Face Plate with the screw holes on the outlet. Use the screws you set aside earlier to secure the Face Plate back in place.
✓ By following these steps, you should be able to successfully rotate the inside dryer plate, ensuring that the L-shaped prong is no longer at the bottom and matches the Whirlpool plug.
